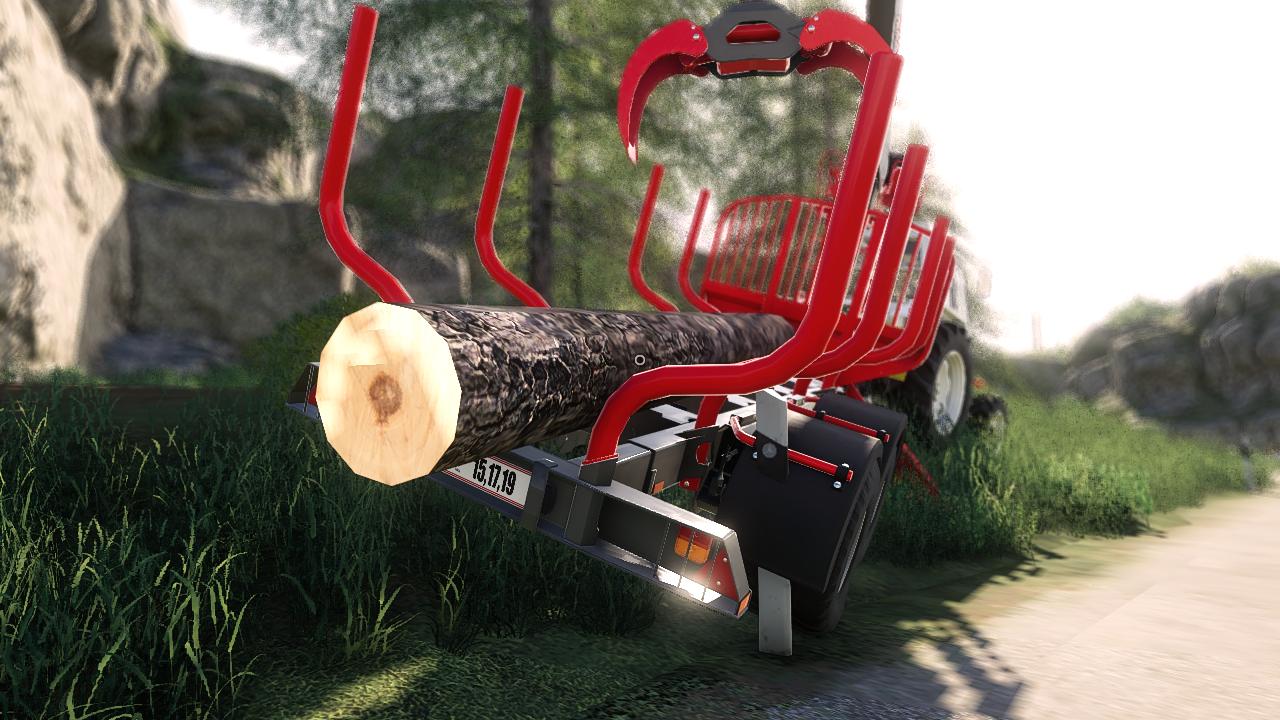

A back trolley from the German-Austrian brand Beha

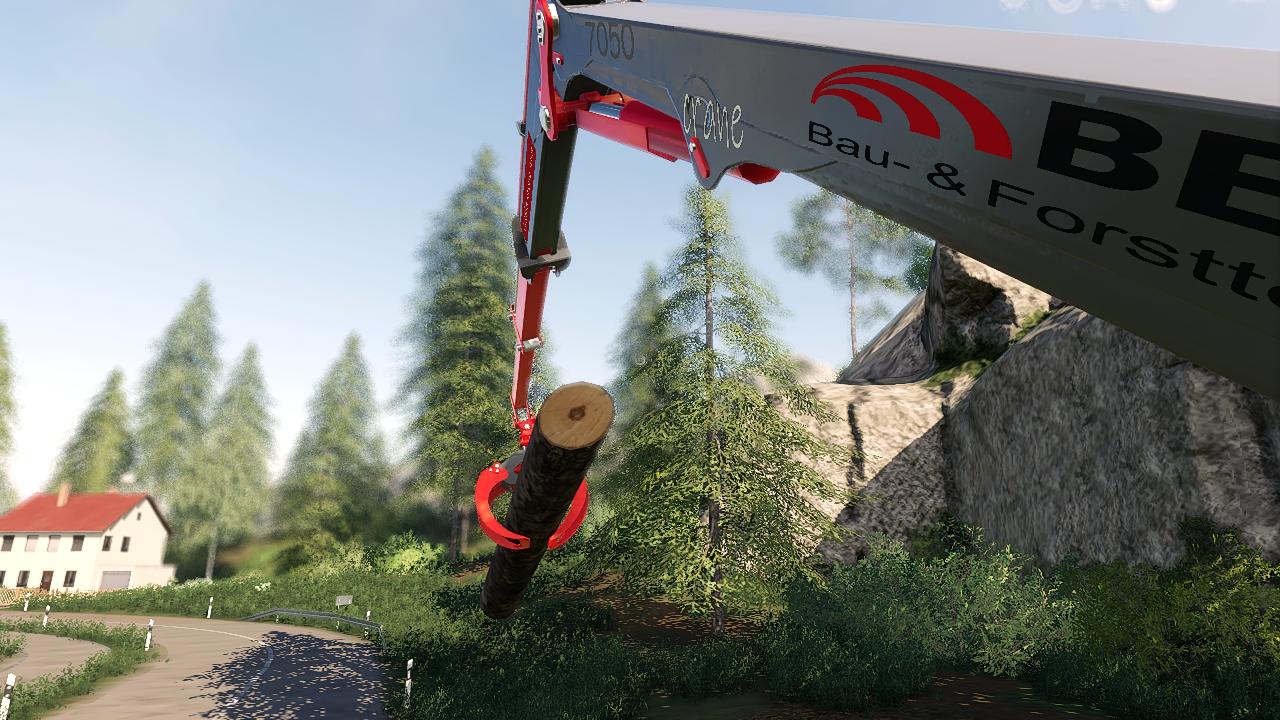

Crane: 6.20m max.reach, A-tripod, cross lever control with swivel function
Nordhydraulik RS 210 max.
70 (l / min), 4-cylinder swivel mechanism, torque 18 kNm, angle of rotation 360 °, deflection
between main arm and extension arm, required oil quantity 60-70 (l / min),
max.working pressure 190 bar,
TG19 and 3to rotator endless, weight 870 kg including gripper and rotator
Lifting capacity at max.reach (without grapple and rotator) 500kg,
Dead weight approx. 2,290 kg
Model: T1500
Total weight (kg): (on public roads) 15,000 kg
Load area (m²): 3.3
Length of loading area (mm): 3950
Trolley extension (mm): 2 x 450
Stakes: 8 pcs.
Stake height in (mm): 1500
Post diameter: 88.9x76.3x6.3
Double frame in (mm): 240/210/110
Steering drawbar: series
Steering angle: 34 °
Standard tires: 550 / 45-22.5
